SERVICERF Analyzer Software Option Upgrade

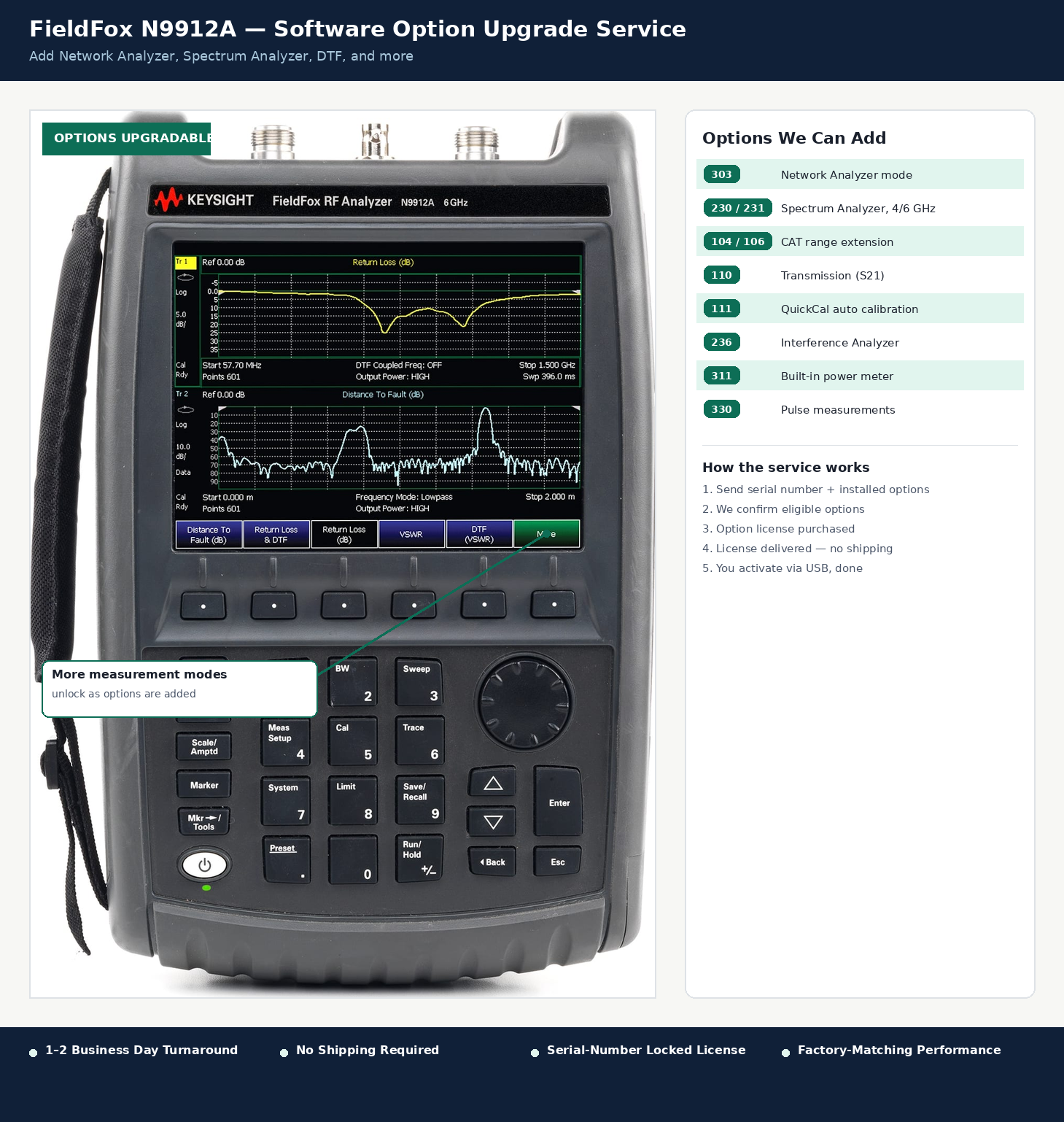

FieldFox N9912A – Full Option Upgrade Service (Official Keysight License)

Unlock the complete capability of your Keysight/Agilent FieldFox N9912A handheld RF analyzer. We handle the entire  upgrade process on your behalf, and guiding you through installation. No shipping required — activation is completed remotely using your own USB flash drive.

Specification Details
Service Type Activation
Brand / Instrument Keysight / Agilent FieldFox N9912A
Compatible Model N9912A only (4 GHz / 6 GHz variants)
Options Covered Options 010, 030, 104, 106, 110, 111, 208, 230, 231, 235, 236, 302, 303, 311, 330 (subject to unit compatibility)
Delivery Method Remote — license file (.lic) sent electronically, no shipping
Turnaround Time 1–2 Business Days after serial number & compatibility confirmation
Requirement Instrument serial number + list of currently installed options

Options Included in This Service

104 CAT frequency range: 2 MHz to 4 GHz
106 CAT frequency range: 2 MHz to 6 GHz
110 Transmission (S21) / 2-port insertion loss
111 QuickCal — automatic calibration using built-in cal standards
303 Network Analyzer mode (S11 mag/phase, S21 with Option 110)
010 Time Domain (low-pass step, low-pass impulse, bandpass impulse)
230 Spectrum Analyzer: 100 kHz to 4 GHz
231 Spectrum Analyzer: 100 kHz to 6 GHz
235 Preamplifier (22 dB gain, improved sensitivity)
236 Interference Analyzer (spectrogram / waterfall display)
311 Built-in Channel Power Meter
302 External USB Power Sensor support
208 Power Sensor Frequency Offset (FOPS)
330 Pulse Measurements (requires USB peak power sensor)
030 Remote Control via iOS App

Note: some options have prerequisites — e.g. Option 110 requires 104 or 106; Options 208/330 require a compatible USB power sensor (sold separately). Not every option is available on every unit; we confirm eligibility before purchasing your license.

Fully usable

All options are fully available and compatible.


Fast Turnaround
1–2 business days, no shipping needed
Serial-Locked
License tied to your instrument only
Factory-Equivalent
Matches original factory option performance

Frequently Asked Questions

Q: Do I need to ship my FieldFox to you?
A: No. Activation is done by copying the license file to a USB flash drive and installing it on your own unit — we guide you through every step.
Q: What information do you need from me before ordering?
A: Your N9912A serial number and a list of currently installed options (found via System → Service Diagnostics → System Information), so we can confirm which options are eligible and quote accurately.

Compatibility note: This service is specific to the Keysight/Agilent FieldFox N9912A (4/6 GHz combination analyzer). It is not compatible with other FieldFox models such as N9913A–N9918A, which use a different option set.
